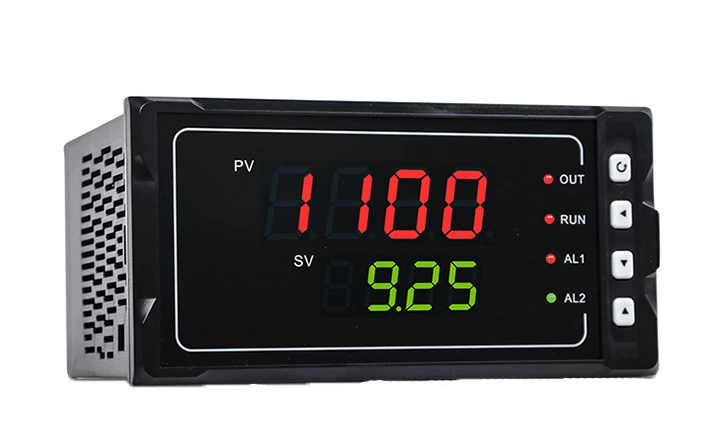

Double four-digit LED display;
7 types of dimensions available;
Standard snap-in installation;
Power supply: 100-240V AC or 20-29V DC;
Standard MODBUS protocol;
| Product | Digital meter/ digital display controller |
| Model | SUP-1100 |
| Display | Dual-screen LED display |
| Dimension | A. 160*80*110mm B. 80*160*110mm C. 96*96*110mm D. 96*48*110mm E. 48*96*110mm F. 72*72*110mm G. 48*48*110mm |
| Input |
Thermocouple B, S, K, E, T, J, R, N, Wre3-25, Wre5-26; RTD: Cu50, Cu53, Cu100, Pt100, BA1, BA2 Analog signal: -100～100mV, 4-20mA, 0-5V, 0-10V, 1-5V |
| Output |
4-20mA (RL≤600Ω) RS485 Modbus-RTU Relay output |
| Power supply | AC/DC100~240V (AC/50-60Hz) DC 20~29V |
* Single-circuit digital display controller provides easy operation with measurement precision of 0.3%;
* 7 types of dimensions available;

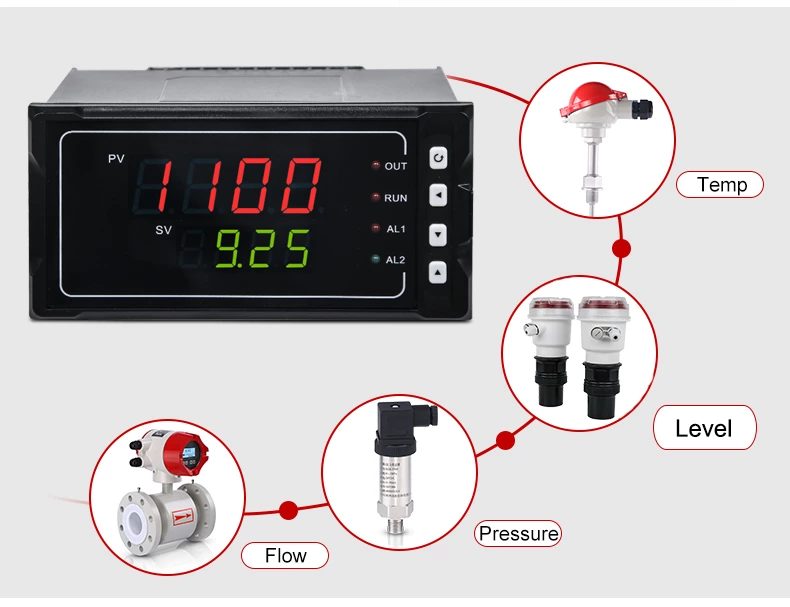

* Double four-digit LED display, used to measure and monitor various industrial processes including voltage, current, frequency, and pressure;
* Supporting 2-way alarm, 1way control output or RS485 communication interface adopting
* Standard MODBUS protocol, 1-way DC24V feed output; photoelectric isolation between input, output
* Standard snap-in installation;
* Power supply: 100-240V AC/DC or 20-29V DC universal;
|
Degree no .Pn |
Signal types |
Measuring range |
Degree no Pn |
Signal types |
Measuring range |
|
0 |
Thermocouple B |
400~1800℃ |
18 |
Remote Resistance 0~350Ω |
-1999~9999 |
|
1 |
Thermocouple S |
0~1600℃ |
19 |
Remote Resistance 3 0~350Ω |
-1999~9999 |
|
2 |
Thermocouple K |
0~1300℃ |
20 |
0~20mV |
-1999~9999 |
|
3 |
Thermocouple E |
0~1000℃ |
21 |
0~40mV |
-1999~9999 |
|
4 |
Thermocouple T |
-200.0~400.0℃ |
22 |
0~100mV |
-1999~9999 |
|
5 |
Thermocouple J |
0~1200℃ |
23 |
-20~20mV |
-1999~9999 |
|
6 |
Thermocouple R |
0~1600℃ |
24 |
-100~100mV |
-1999~9999 |
|
7 |
Thermocouple N |
0~1300℃ |
25 |
0~20mA |
-1999~9999 |
|
8 |
F2 |
700~2000℃ |
26 |
0~10mA |
-1999~9999 |
|
9 |
Thermocouple Wre3-25 |
0~2300℃ |
27 |
4~20mA |
-1999~9999 |
|
10 |
Thermocouple Wre5-26 |
0~2300℃ |
28 |
0~5V |
-1999~9999 |
|
11 |
RTD Cu50 |
-50.0~150.0℃ |
29 |
1~5V |
-1999~9999 |
|
12 |
RTD Cu53 |
-50.0~150.0℃ |
30 |
-5~5V |
-1999~9999 |
|
13 |
RTD Cu100 |
-50.0~150.0℃ |
31 |
0~10V |
-1999~9999 |
|
14 |
RTD Pt100 |
-200.0~650.0℃ |
32 |
0~10mA square |
-1999~9999 |
|
15 |
RTD BA1 |
-200.0~600.0℃ |
33 |
4~20mA square |
-1999~9999 |
|
16 |
RTD BA2 |
-200.0~600.0℃ |
34 |
0~5V square |
-1999~9999 |
|
17 |
Linear resistance 0~500Ω |
-1999~9999 |
35 |
1~5V square |
-1999~9999 |
